Features:
1.Vision intelligent identifies diamond's position, pron and cons worktable for equal or greather than 1mm diamond;
2.Vision intelligent identifies craft's position and angle. The placement of craft can be arbitrary arranged;
3. 4 Nozzles dispensing together, intelligent optimization diamond taking path, increase of production ;
4. Intelligent identifies missing dispensing, improve diamond dispensing quality ;
5. Glue injection and diamond dispensing are combinded or can be used singly or in combination;
6. High efficient diamond dispensingm, maximum speed can reach 120 pcs/min.
Parameter:

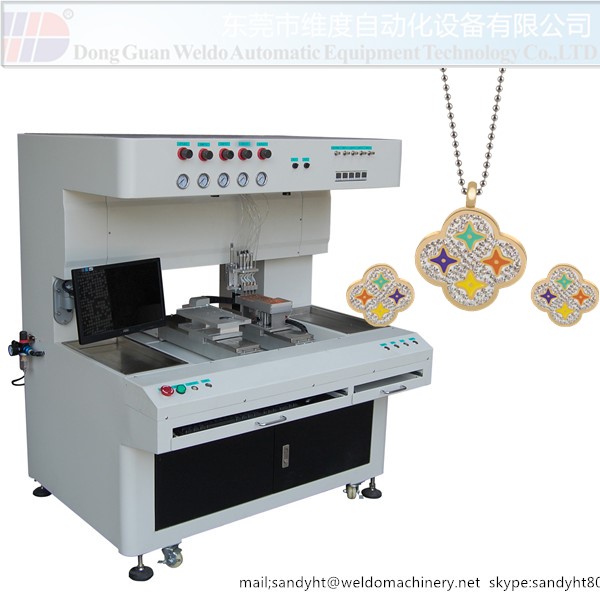

| Name | Weldo Necklace Diamond Dispensing Robot |
| Model | WD-DR6-1 |
| Diamond | V-bottom diamond |
| Control | Computer, Window 7 system |
| Visual system | 2 visual systems |
| Program Software | DrawTools(Weldo own software) |
| Axis | 6 |
| working table for craft | X:260mm Y:360mm Z:80mm |
| Working tabel for diamond | X:130mm Y:360mm |
| U axis(in horizontal) | 680mm |
| Working speed | 2 piece/s |
| diamond size | 0.8mm to 4mm |
| repeated accuracy |
+/-0.02mm, Double vision positioning system |
| Transmission | AC servo motor + Rolling screw |
|
working environment |
Humidity: 20-90% temperature:0-40℃ |
| Machine dimension | 1180(L)*800(W)*1390(H)mm |
| Packing size | 1340(L)*1040(W)*1520(H)mm |
| GW | 500KG |
| Voltage and Power | AC220V 50-60HZ 2.0KW |
