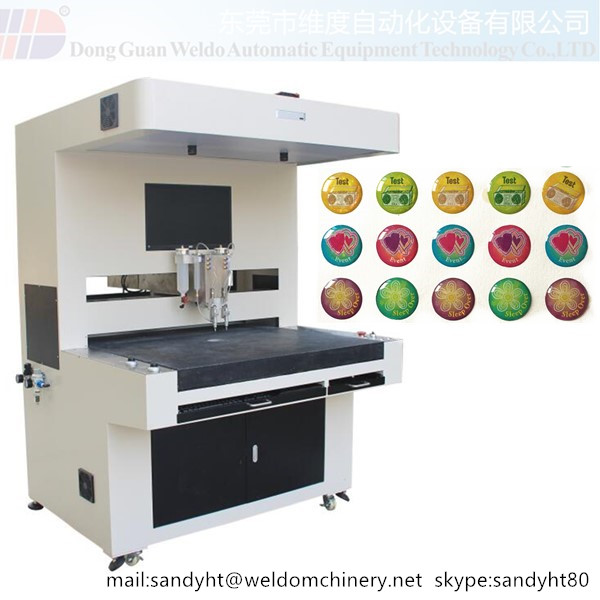

Bi-Component Doming Sticker Dispensing Machine
Introduction：
Weldo Epoxy Doming dispensing machine is used to bi-component mirco-injection ,the machine is applied double vision location system, and replaces tranditional manual injection to dispense epoxy on hang tags , labels , stickers ect .
Features：
1、Intellignet one time scan, hundres of products can be locatedm one time processing；
2、Program in computer, easy to learn, 2-3 hours to get all skills ；
3、Double vision intelligent identifies craft's position and angle, the placement of craft can be arbitrarily arranged on worktable；
4、Intelligent optimiztion coloring path, increase of production；
5、Applied double working tables, non-stop running.The machine can process two different desings at one time；
6、The machine can dispense two different colors at one time；
7、Applied high speed dispensing gun system, maximum dispensing speed is 5 seconds，
8、Electronically controlled pressure regulating system , high accuracy and more stable dispensing gule.
Application：

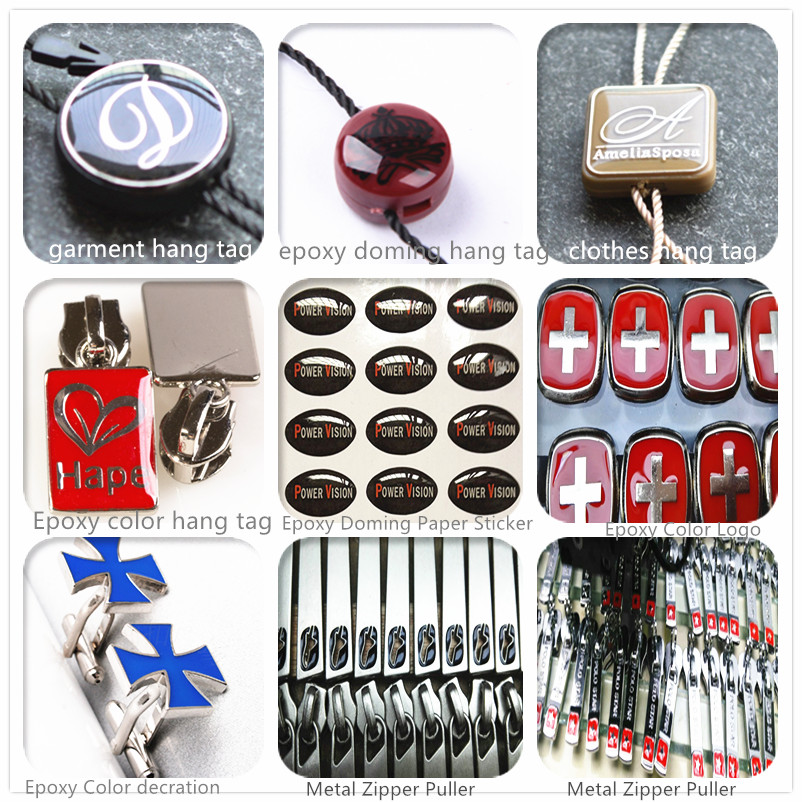

epoxy doming epoxy , epoxy pullers , epoxy coloring buttons, epoxy coloring keychains , epoxy doming stikers , bi-component electronic product and many others.
Parameter：
| Model: | WD2V2F-800 |
| Material: | soft enamel , epoxy resin , bi-compoent glue |
| Dispensing Color | 2 |
| Program | computer program |
| Location | Visual location without jig |
| Camera pixel | 1300 million |
| Worktable | two worktables |
| signle worktable size | 400*300mm |
| scaning time | 1-2s |
|
running distance |
X:800mm, Y:300mm,Z:60mm |
| total wotable size | X:1120, Y:720mm |
| speed | 60000mm/min |
|
dispensing system |
dispensing gun |
| maximum speed | 5s |
| location precision | +0.05mm |
| visual location precision | +0.2mm |
| transmission | screw balling |
| Motor | Servo motor + driver |
| Pneumatic mode | SMC electromagnetic valve |
| Wortable load | 100KG |
| Valtage | 220V 50/60HZ |
|
Power |
1.5KW |
| Machine size | 1400*1200*1950mm |
Welcome consult with us, we service:
1. Best Solution for your production line
2. Fast delivery for your urgent order.
3. Overseas service is available
4. Mail us immediately to let us know what you want!
